RX³: essential protection
The RX³ range of RCCBs and MCBs satisfies the essential requirements on residential or small commercial sites, protecting against short-circuits, overloads and residual current faults.

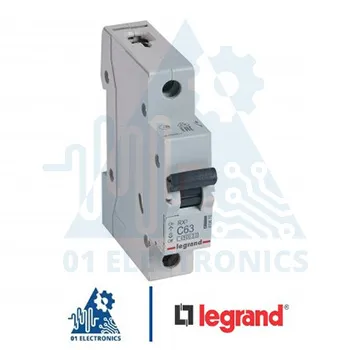

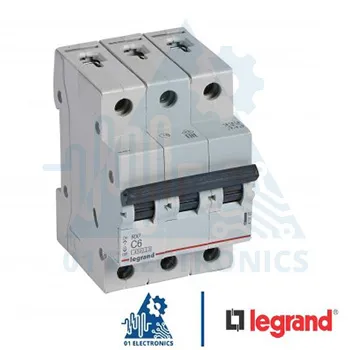

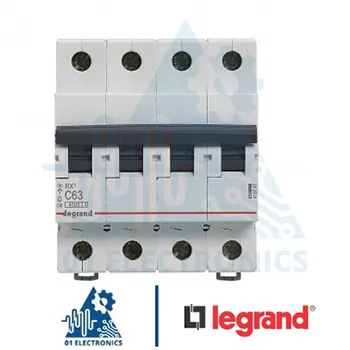

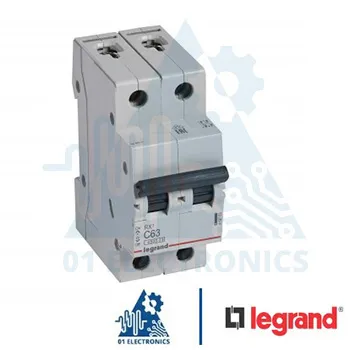

MCBs:
In = 6 to 63 A, 1P to 4P
Breaking capacity: 4500 and 6000 A 230/400 V~
B and C curves
IEC 60898-1Versions compatible with prong-type or fork-type supply busbars.
RX³ 6000

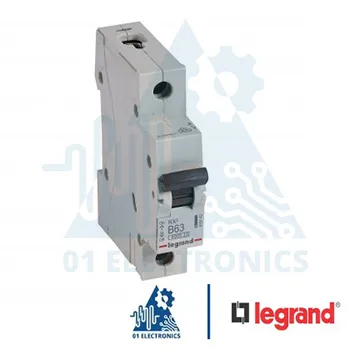

MCBs RX³ 6000 – thermal magnetic MCBs from 6 A to 63 A – B curve,1P to 3P.
Conform to IEC 60898-1. Do not accept auxiliaries, and add-on modules. Compatible with prong-type and fork type supply busbars. Breaking capacity:. 6000 – IEC 60898-1 – 230/400 V~. 6 kA – IEC 60947-2 – 230/400 V~. 10000 – IEC 60898-1 – 127/220 V~. 10 kA – IEC 60947-2 – 127/220 V~.

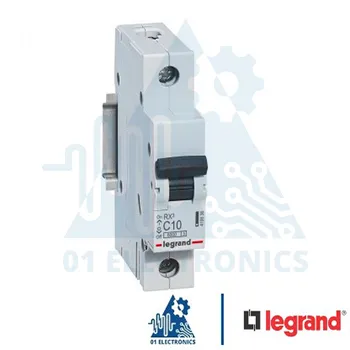

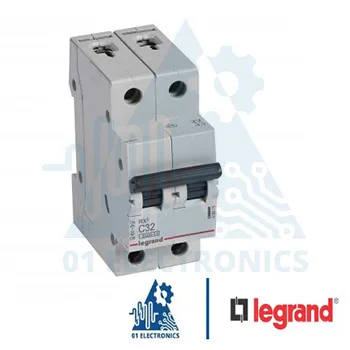

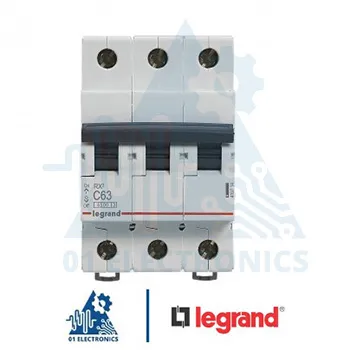

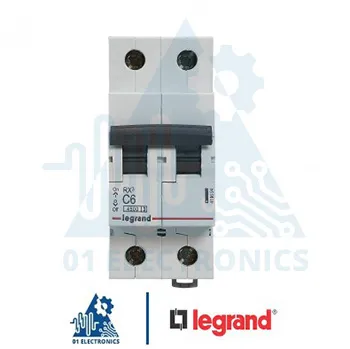

MCBs RX³ 6000 – thermal magnetic MCBs from 6 A to 63 A – C curve,1P to 4P.
Conform to IEC 60898-1. Do not accept auxiliaries, and add-on modules. Compatible with prong-type supply busbars. Breaking capacity:. 6000 – IEC 60898-1 – 230/400 V~. 6 kA – IEC 60947-2 – 230/400 V~. 10000 – IEC 60898-1 – 127/220 V~. 10 kA – IEC 60947-2 – 127/220 V~.
