TX³

TX³: the solution for current sites
Designed to meet the requirements of current sites in the residential and commercial sectors, Legrand’s TX³ range effectively protects people (against risk of electrocution) and property (against short-circuits, overloads and residual current faults).

Comprises thermal-magnetic circuit breakers and RCCBs, compatible with DX³ control and signalling auxiliaries

MCBs:

• In = 2 to 63 A, 1P to 4P
• Breaking capacity: 6000 and 10,000 A
• 230/400 V~
• B and C curves
• IEC 60898-1

Versions compatible with prong-type or fork-type supply busbars.

MCBs TX³ 6000 – thermal magnetic MCBs

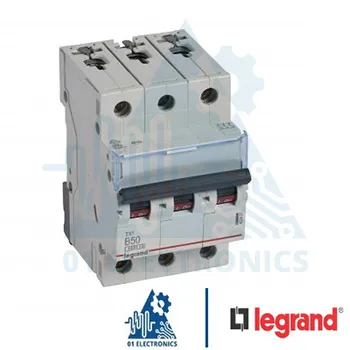

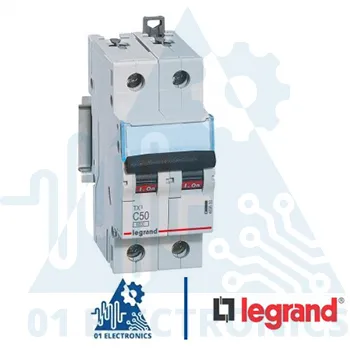

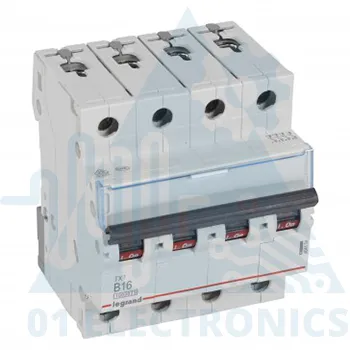

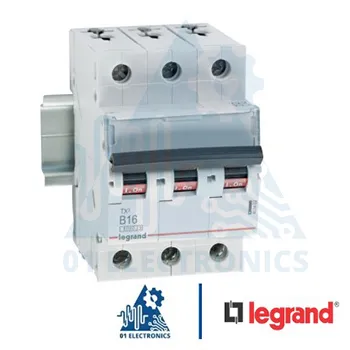

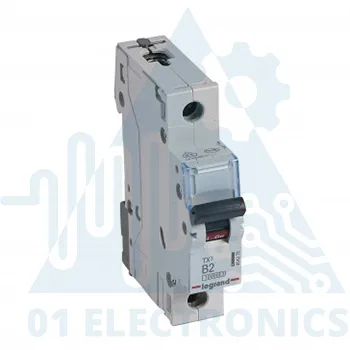

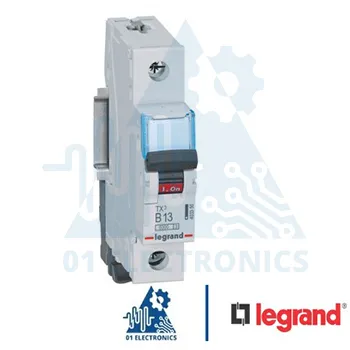

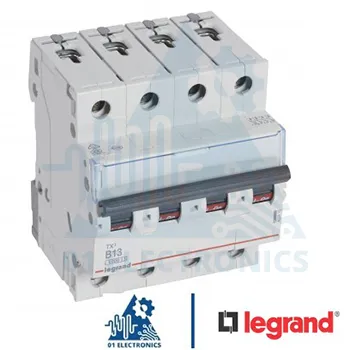

MCBs TX³ 6000 – thermal magnetic MCBs from 2 A to 63 A – B & C curve,1P to 4P.
Conform to IEC 60898-1. Compatible with prong-type and fork type supply busbars. Equipped with special DIN rail clamp allowing independent MCB removal with supply busbar in place. Breaking capacity:. 6000 – IEC 60898-1 – 230/400 V~. 6 kA – IEC 60947-2 – 230/400 V~. Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls . Do not accept add-on modules.

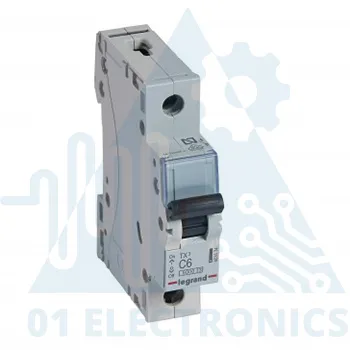

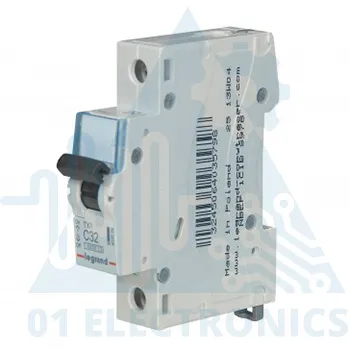

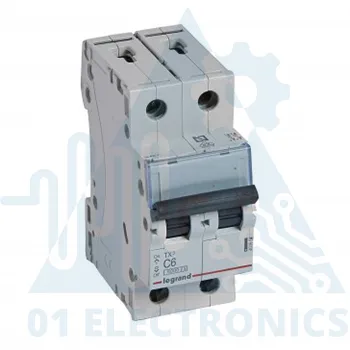

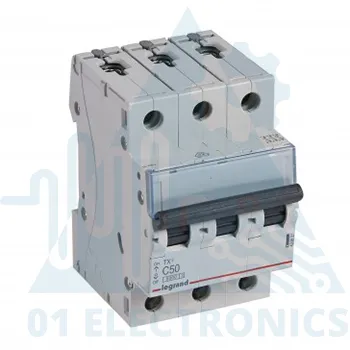

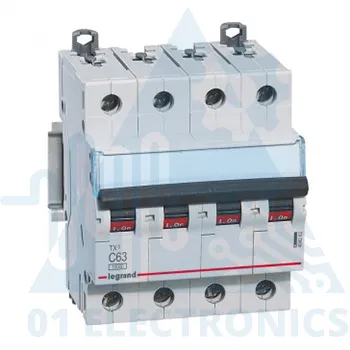

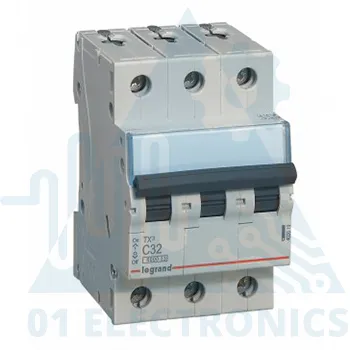

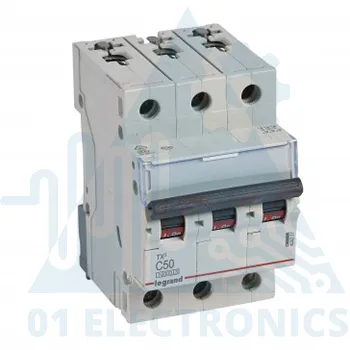

MCBs TX³ 6000 – thermal magnetic MCBs from 6 A to 63 A – C curve,1P to 4P.
Conform to IEC 60898-1. Compatible with prong-type supply busbars. Breaking capacity:. 6000 – IEC 60898-1 – 230/400 V~. 6 kA – IEC 60947-2 – 230/400 V~. Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls . Do not accept add-on modules.

MCBs TX³ 10000 – thermal magnetic MCBs

MCBs TX³ 10000 – thermal magnetic MCBs from 2 A to 63 A – B & C curve,1P to 4P.
Conform to IEC 60898-1. Compatible with prong-type and fork type supply busbars. Equipped with special DIN rail clamp allowing independent MCB removal with supply busbar in place. Breaking capacity:. 10000 – IEC 60898-1 – 230/400 V~. 10 kA – IEC 60947-2 – 230/400 V~. Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls . Do not accept add-on modules.
